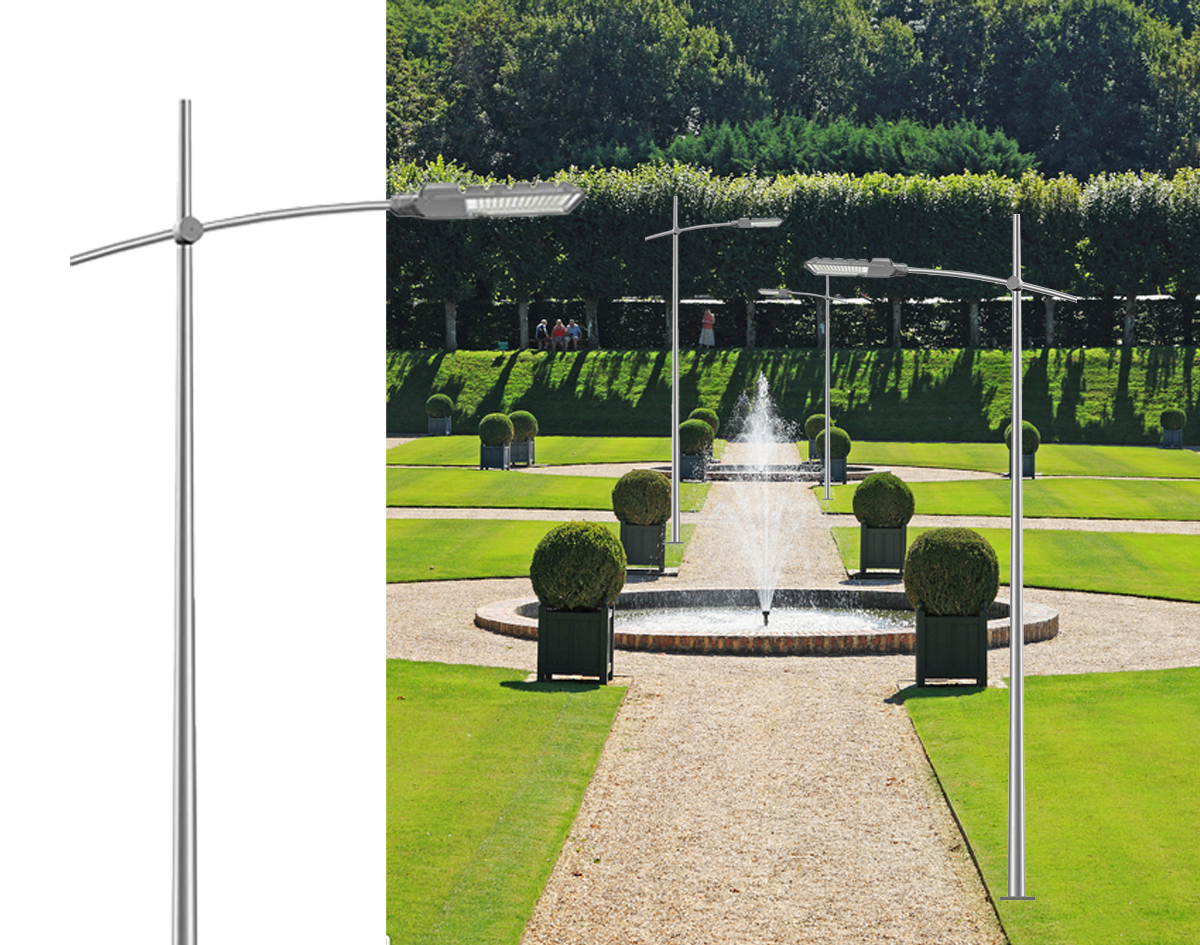

4-12M Ib Caj Npab Conical Round Light Ncej Featured duab
  • 4-12M Ib Caj Npab Conical Round Light Ncej

4-12M Ib Caj Npab Conical Round Light Ncej

Lus piav qhia luv luv:

Conical txoj kev teeb ncej sib txuas cov txheej txheem tsim khoom, cov khoom siv ruaj khov, thiab cov kev xaiv yooj yim installation, muaj peev xwm tiv taus huab cua hnyav, zoo tshaj plaws kev faib tawm, lub zog ua haujlwm, thiab kev saib xyuas tsawg.


  • facebook (2)
  • youtube (1)

DOWNLOAD
QHIA

Product Detail

Khoom cim npe

4-12M Ib Caj Npab Conical Round Light Ncej

Technical Data

Khoom siv Feem ntau Q345B/A572, Q235B/A36, Q460, ASTM573 GR65, GR50, SS400, SS490, ST52
Qhov siab 4M 5M 6M 7M 8M 9M 10 M 12 M
Dimensions(d/D) 60mm / 140mm 60mm / 150mm 70mm / 150 hli 70mm / 170 hli 80mm / 180 hli 80mm / 190 hli 85mm / 200 hli 90mm / 210 hli
Thickness 3.0mm ib 3.0mm ib 3.0mm ib 3.0mm ib 3.5mm ib 3.75mm ib 4.0mm ib 4.5mm ib
Flange 260mm * 12mm 260mm * 14mm 280mm * 16mm 300mm * 16mm 320mm * 18mm 350mm * 18mm 400mm * 20mm 450mm * 20mm
Tolerance ntawm qhov ntev ± 2/%
Yam tsawg kawg nkaus yield zog 285 Mpa
Max qhov kawg tensile zog 415 Mpa
Anti-corrosion kev ua tau zoo Chav II
Tawm tsam av qeeg qib 10
Xim Customized
Kev kho saum npoo Kub-dip Galvanized thiab Electrostatic Spraying, Rustproof, Anti-corrosion kev kawm II
Hom hom Conical ncej, Octagonal ncej, Square ncej, Diameter ncej
Hom caj npab Customized: ib sab caj npab, ob txhais caj npab, triple caj npab, plaub caj npab
Stiffener Nrog loj loj kom muaj zog tus ncej kom tiv taus cua
Hmoov txheej Thickness ntawm hmoov txheej> 100um.Pure polyester yas hmoov txheej yog ruaj khov, thiab muaj zog adhesion & muaj zog ultraviolet rays tsis kam. Zaj duab xis thickness yog ntau tshaj 100 um thiab muaj zog adhesion. Qhov saum npoo tsis tev tawm txawm tias cov hniav khawb (15 × 6 mm square).
Cua Resistance Raws li cov huab cua hauv zos, General tsim lub zog ntawm cua tsis kam yog ≥150KM / H
Vuam Standard Tsis muaj qhov tawg, tsis muaj qhov xau vuam, tsis muaj qhov tom ntug, vuam theem tawm yam tsis muaj qhov sib txawv ntawm concavo-convex fluctuation los yog cov vuam tsis xws luag.
Kub-dip Galvanized Thickness ntawm kub-galvanized> 80um.Kub Dip Sab hauv thiab sab nraud tiv thaiv corrosion los ntawm kub dipping acid. uas yog raws li BS EN ISO1461 lossis GB / T13912-92 tus qauv. Tsim lub neej ntawm tus ncej yog ntau tshaj 25 xyoo, thiab galvanized nto yog du thiab nrog tib xim. Flake peeling tsis tau pom tom qab maul kuaj.
Anchor bolts Xaiv tau
Passivation Muaj

Product Description

Conical txoj kev teeb ncej yog tsim los ntawm cov ntaub ntawv zoo thiab ua tiav los ntawm cov txheej txheem ntau lawm, cov khoom cog lus tias yuav sawv kev sim ntawm lub sijhawm thaum ci ntsa iab rau txoj kev, txoj kev, thiab txoj kev loj.

Cov txheej txheem ntau lawm ntawm conical txoj kev teeb ncej yog meticulous thiab meej. Txhua tus pas nrig yog tsim los ntawm kev siv thev naus laus zis thev naus laus zis thiab kev siv tshuab siab heev, kom ntseeg tau tias muaj tseeb thiab sib xws hauv txhua qhov kev nthuav dav. Cov ntaub ntawv zoo tau raug xaiv ua ntej, tom qab ntawd tus pas nrig yog zoo li tus qauv conical los txhim kho nws lub zog thiab lub neej ntev. Cov ncej yog ua tib zoo welded thiab ua raws li kev tswj xyuas nruj kom lav lawv qhov kev ua tau zoo thiab ua haujlwm ntev.

Tsis tas li ntawd, conical txoj kev teeb ncej yog tsim los tiv thaiv huab cua hnyav. Txawm hais tias nws yog hnub hnyav, nag hnyav, lossis cua daj cua dub, cov ncej no tuaj yeem nqa nws. Nrog rau corrosion-resistant txheej, lawv tuav lawv cov pristine tsos, kom ntseeg tau ntev-ntev, txhim khu kev qha teeb pom kev zoo.

Ib qho ntawm cov yam ntxwv tseem ceeb ntawm tapered lub teeb ncej yog lawv saj zawg zog installation xaiv. Haum rau ntau qhov chaw, cov ncej teeb no tuaj yeem ntsia tau yooj yim ntawm txoj kev, txoj kev, txoj kev loj, lossis ib cheeb tsam hauv nroog uas yuav tsum muaj teeb pom kev zoo. Lub tapered tsim muab lub teeb pom kev zoo faib, illuminating loj cheeb tsam thaum txo lub teeb muaj kuab paug. Qhov no ua kom muaj kev nyab xeeb thiab yooj yim rau cov neeg taug kev thiab cov neeg tsav tsheb, txhim kho kev paub hauv nroog tag nrho.

Cov conical txoj kev teeb ncej no tsis tsuas yog muab cov teeb pom kev zoo tab sis kuj muaj zog heev. Lawv tau tsim tshwj xeeb los hloov kho rau ntau yam teeb pom kev zoo xws li LED lossis hnub ci teeb, uas tuaj yeem txo qis kev siv hluav taws xob thiab kev cuam tshuam ib puag ncig. Los ntawm kev siv cov teeb pom kev zoo ib puag ncig, cov nroog tuaj yeem pab txhawb rau yav tom ntej zoo dua thaum tau txais txiaj ntsig los ntawm kev txo nqi hluav taws xob.

Tsis tas li ntawd, kev saib xyuas ntawm conical txoj kev teeb ncej kuj yooj yim heev. Cov ntaub ntawv siv thiab ua tib zoo tsim kom muaj kev hnav tsawg heev thaum lub sijhawm, ua rau muaj kev hloov pauv thiab kho tsawg dua. Cov ncej no muab cov chaw hauv nroog thiab cov pawg sab laj nrog kev txuag nqi tseem ceeb los ntawm kev txo qhov xav tau kev saib xyuas tsis tu ncua.

Kev kho kom haum

Customization xaiv

Khoom Qhia

Kub dipped galvanized lub teeb ncej

FAQ

1. Q: Koj puas yog lub Hoobkas lossis tuam txhab lag luam?

A: Peb yog lub Hoobkas.

Hauv peb lub tuam txhab, peb txaus siab rau peb tus kheej los ua ib qho chaw tsim khoom tsim. Peb lub Hoobkas tshaj lij muaj cov tshuab tshiab thiab cov cuab yeej siv los xyuas kom meej tias peb tuaj yeem muab peb cov neeg siv khoom zoo tshaj plaws. Kos rau xyoo ntawm kev tshaj lij kev lag luam, peb pheej siv zog ua kom zoo tshaj plaws thiab txaus siab rau cov neeg siv khoom.

2. Q: Koj cov khoom tseem ceeb yog dab tsi?

A: Peb cov khoom tseem ceeb yog Hnub Ci Txoj Kev Teeb, Ncej, LED Txoj Kev Teeb, Vaj Teeb thiab lwm yam khoom lag luam thiab lwm yam.

3. Q: Koj lub sijhawm ua haujlwm ntev npaum li cas?

A: 5-7 hnub ua haujlwm rau cov qauv; nyob ib ncig ntawm 15 hnub ua haujlwm rau kev txiav txim ntau.

4. Q: Koj txoj kev xa khoom yog dab tsi?

A: Los ntawm huab cua lossis hiav txwv nkoj muaj.

5. Q: Koj puas muaj kev pabcuam OEM / ODM?

A: Yog.
Txawm hais tias koj tab tom nrhiav kev cai txiav txim, cov khoom lag luam tawm lossis cov kev cai daws teeb meem, peb muab ntau yam khoom kom tau raws li koj cov kev xav tau tshwj xeeb. Los ntawm prototyping mus rau series ntau lawm, peb lis txhua kauj ruam ntawm cov txheej txheem tsim nyob rau hauv-lub tsev, kom ntseeg tau tias peb muaj peev xwm tswj tau lub siab tshaj plaws qauv ntawm zoo thiab sib xws.
