Technical parameter | |||||
Khoom qauv | Sib ntaus sib tua-A | Sib ntaus sib tua-B | Sib ntaus sib tua-C | Sib ntaus sib tua-D | Sib ntaus sib tua-E |
Rated zog | 40 W | 50W-60W | 60W-70W | 80w ua | 100 W |
Qhov system voltage | 12 v | 12 v | 12 v | 12 v | 12 v |
Lithium roj teeb (LiFePO4) | 12.8V/18AH | 12.8V/24AH | 12.8V/30AH | 12.8V / 36AH | 12.8V/142AH |
Hnub ci vaj huam sib luag | 18V / 40W | 18V / 50W | 18V / 60W | 18V / 80W | 18V / 100W |

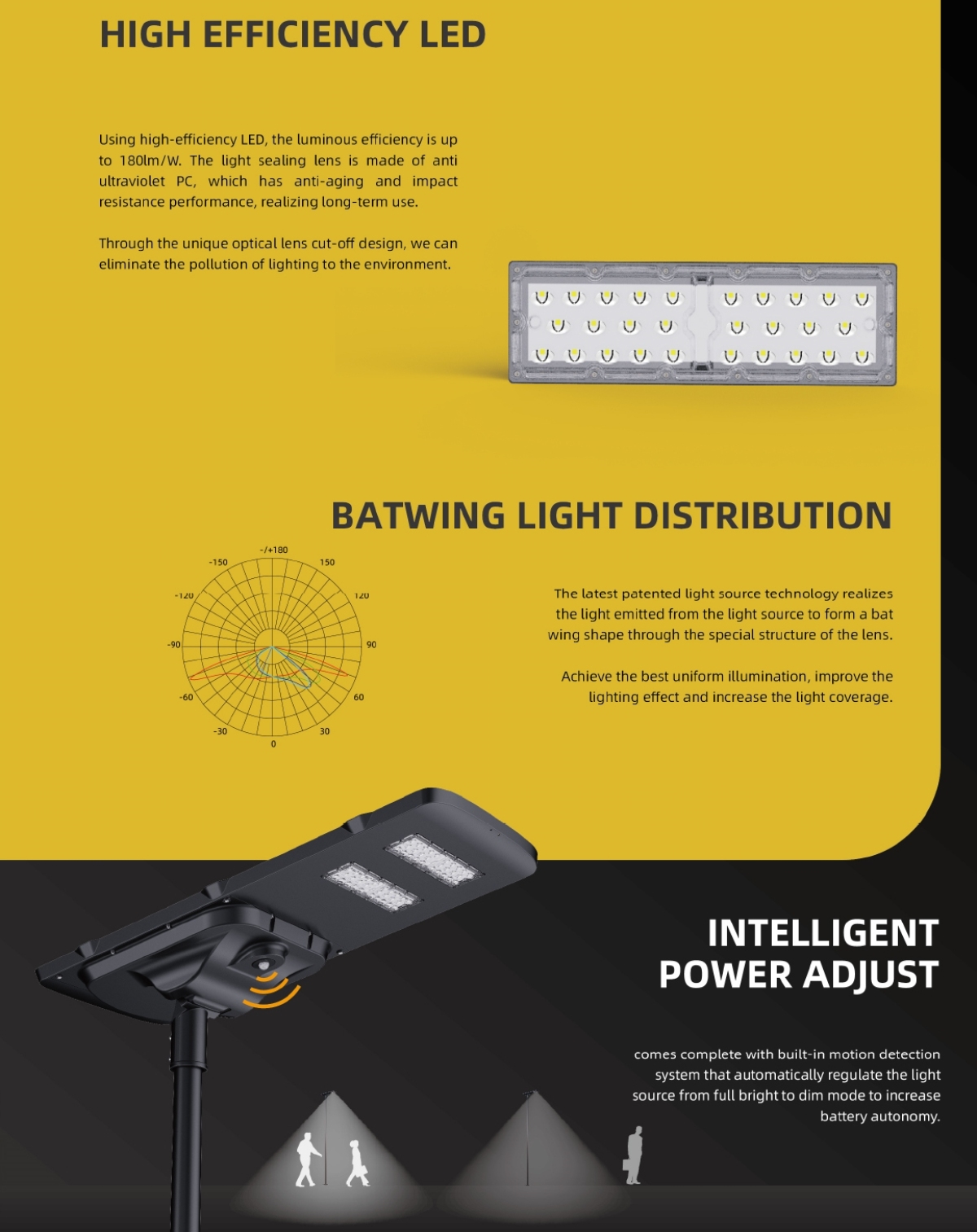

Hom teeb ci | Bat Wing rau lub teeb | ||||
luminous efficiency | 170L m/W | ||||
LED lub neej | 50000 H | ||||
CRI | CRI 70 / CR80 | ||||
CCT | 2200K-6500K | ||||
IP | IP66 | ||||
IK | ib 09 | ||||
Ua haujlwm ib puag ncig | -20 ℃ ~ 45 ℃ . 20% ~ 90% RH | ||||
Cia Kub | -20 ℃ -60 ℃.10% -90% RH | ||||
Teeb lub cev khoom | Aluminium tuag-casting | ||||
Lens Khoom | PC Lens PC | ||||
Them sij hawm | 6 teev | ||||
Lub Sijhawm Ua Haujlwm | 2-3 Hnub (Auto Control) | ||||
Installation qhov siab | 4-5 m | 5-6 m | 6-7 m | 7-8 m | 8-10 m |
Luminaire NWS | /kg | /kg | /kg | /kg | /kg |
